Introduction

Accurate forecasting mechanisms are becoming increasingly important in the rapidly changing global energy dynamics landscape. The article explores the transformative potential of deep learning and how it can be applied to the prediction of energy usage patterns. With the increasing global demand for energy, conventional forecasting techniques are becoming less and less effective at capturing the complexities of the modern energy environment.

In the field of artificial intelligence, deep learning is a cutting-edge technical paradigm that is a shining example of innovation in the search for more precise and flexible forecasting models. The complex interactions between variables impacting energy usage, such as weather patterns, technological developments, and changing consumer behaviour, are frequently too complex for conventional methodologies to fully capture. Because of these traditional methodologies' limitations, there is an urgent need for more complex and dynamic solutions. Deep learning can play a revolutionary role in this regard.

One of deep learning's most important benefits is its capacity to identify weak relationships and correlations across large datasets without the need for explicit programming. This helps the models to learn and adapt over time, becoming aware of new patterns and unanticipated changes, which improves prediction accuracy. Because energy consumption is dynamic and characterised by unforeseen occurrences and outside influences, forecasting methods must be flexible enough to adjust and learn from changing conditions.

The incorporation of deep learning into energy forecasting represents a change in perspective, promoting a more robust and adaptable approach, while conventional methods grow progressively insufficient. Modern technology combined with the inherent difficulties of forecasting patterns of energy usage creates a compelling story in which innovation is the primary force behind the development of an energy future that is both sustainable and well controlled. With its ability to go beyond the constraints of traditional approaches, deep learning emerges as a revolutionary force in creating a more accurate and adaptive energy forecasting environment for the challenges of the future.

Background

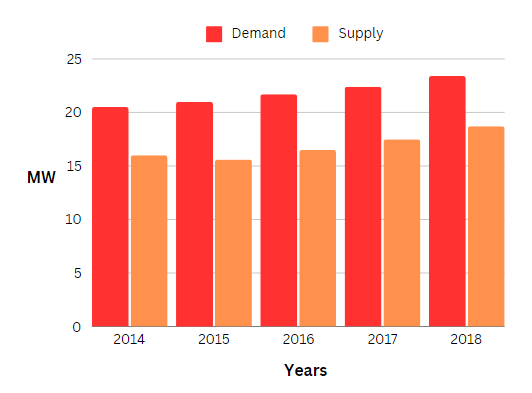

For a number of years, Pakistan, along with numerous other developing countries, has been dealing with an ongoing energy problem. This problem is caused by a large energy deficit, in which there is a greater demand than there is supply of electricity. This disparity increased significantly in 2023, when the demand for electricity reached 28,200 megawatts and the supply could only meet 21,200 megawatts, leaving a significant 7,000 megawatt shortfall. This shortfall results in regular blackouts, impeding economic expansion, upsetting everyday routines, and providing a substantial roadblock to advancement.

A diversified strategy is needed to address the energy shortfall and create a secure energy future. Accurate and trustworthy energy consumption projections are a critical first step. Thankfully, developments in technology, especially in the field of deep learning, present a viable way to accomplish these objectives. Artificial intelligence's deep learning branch excels in understanding complex patterns in large datasets. Deep learning models can produce extremely accurate projections by utilising historical information, offering insightful information about future energy demand.

Challenges

The dynamic nature of energy systems presents a variety of challenges when it comes to accurately forecasting energy consumption. The fundamental complexity and unpredictability of the variables affecting consumption patterns is a major barrier. Variable weather, changing technology environments, and erratic human behaviour all add to the complex web of factors that is difficult for conventional forecasting techniques to fully capture. Layers of complexity are further increased by the absence of historical data for developing technologies and the inherent uncertainty surrounding policy changes. The dynamics of energy consumption are non-linear, which makes it more difficult to use conventional models to identify subtle patterns or abrupt shifts. Furthermore, unpredictable external influences are introduced by the interconnection of the world's energy markets. In order to overcome these obstacles, deep learning frameworks must be used creatively in order to build models that are resilient and precise enough to adjust to the changing energy landscape.

Models

A number of sophisticated models have surfaced as potent instruments in the field of energy consumption forecasting, each offering special advantages to improve prediction accuracy. In this dynamic environment, three key players stand out: Transformer, Artificial Neural Networks (ANN), and Long Short-Term Memory (LSTM).

Recurrent neural networks (RNNs) of the long-term dependency (LSTM) type are intended to tackle the problem of identifying long-term dependencies in sequential input. LSTM performs exceptionally well in identifying intricate linkages and dependencies in the context of energy forecasting, where patterns may span long time spans. It excels at capturing the dynamic character of energy consumption patterns because of its capacity to retain and apply information across long sequences. An accurate foundation for forecasts is provided by LSTM models, which take historical context into account.

Transformer models are useful in many fields, including as energy forecasting, even though they were initially created for natural language processing jobs. By focusing on pertinent segments of the input sequence, their attention mechanism facilitates efficient feature extraction and the capture of complex patterns. Transformers are very good at managing parallel processing, which makes them useful for one of the most important aspects of energy consumption forecasting: modelling relationships within time series data. Their increasing prominence in this industry can be attributed to their adaptability and scalability.

In order to forecast energy usage, Artificial Neural Networks (ANN), a basic architecture in machine learning, remain essential. An artificial neural network (ANN) processes data through layers of connected nodes, imitating the composition and operation of the human brain. Artificial Neural Networks (ANNs) have remarkable adaptability and learning capabilities in the energy forecasting domain, with their predictions continuously improving with further data exposure. They are useful tools for understanding the subtleties of the dynamics of energy use because of their ability to manage non-linear interactions and adjust to changing circumstances.

ANN-LSTM

ANN-LSTM hybrid model: Combining the advantages of Artificial Neural Networks (ANN) and Long Short-Term Memory (LSTM) networks, our method offers a powerful and new way to forecast energy usage. This novel combination seeks to leverage both the sequential memory capabilities of LSTM and the adaptive learning of ANN. Our proposed model aims to solve the shortcomings of current approaches by combining these two different neural network architectures to provide a comprehensive and dynamic framework for energy consumption pattern prediction. The ANN-LSTM model offers a flexible and progressive approach that has the potential to transform the accuracy and robustness of energy forecasting assignments.

Dataset

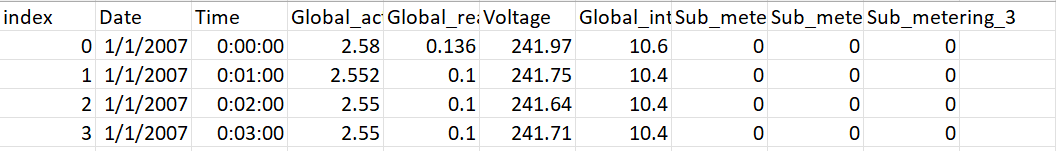

The "household_power_consumption" dataset was chosen to train the suggested ANN-LSTM hybrid model since it provides a thorough understanding of the complex dynamics of household energy consumption. The collection, which dates back to January 1, 2007, includes minute-by-minute records that include information on global active power, global reactive power, voltage, global intensity, and sub-metering in three distinct categories.

These characteristics offer a comprehensive picture of the energy profile of the home, enabling the model to identify subtle trends and correlations in the data. The dataset captures the intricacy of actual energy consumption scenarios with a wide range of variables, such as sub-metering breakdowns and voltage changes. By utilizing this extensive and comprehensive dataset, the suggested ANN-LSTM model may be trained on a strong basis, which will allow it to adapt well to different patterns of energy usage and lead to more precise predicting outcomes.

Preprocessing

To get ready for training the ANN-LSTM hybrid model, the "household_power_consumption" dataset goes through significant changes throughout the preprocessing phase. The 'Date' and 'Time' columns are combined to create a new 'DateTime' column, which acts as the temporal index, introducing the temporal dimension. For enhanced efficiency, any unnecessary date and time information is then eliminated. The dataset is imputed with the mean values of each corresponding column in order to accommodate missing values. The information is additionally arranged into three-length sequences, which represent successive patterns found in the dataset. The last column is used as the goal variable, while the remaining columns are used as input characteristics. These sequences are then organised to provide a format that is appropriate for training. This preparation technique guarantees that the dataset is formatted correctly, improving the ANN-LSTM model's capacity to identify and precisely forecast complex trends in household energy consumption.

Model Architecture

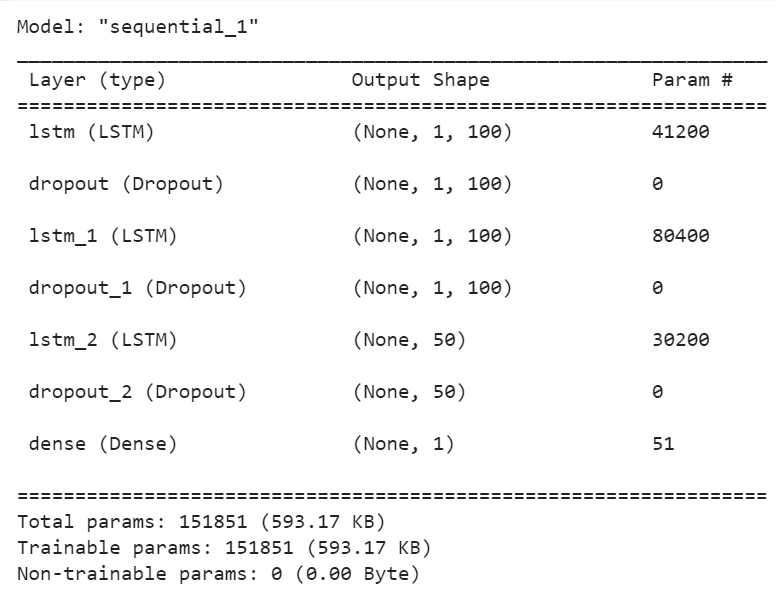

The suggested ANN-LSTM hybrid model's architecture was thoughtfully created to maximize neural networks' predictive capacity and is intended especially for the complex task of energy consumption forecasting. Made up of three Long Short-Term Memory (LSTM) layers that are arranged sequentially, each layer functions as a memory cell and is skilled at recognizing and interpreting temporal correlations in the dataset. The model gains a feeling of non-linearity via the selection of Rectified Linear Unit (ReLU) activation functions, which enables it to recognize intricate patterns in the data.

Dropout layers are systematically added after each LSTM layer to prevent overfitting by progressively lowering the likelihood that the model would rely too much on a small number of data points. By improving the model's capacity to generalize patterns outside of the training set, this regularization strategy encourages reliable predictions in real-world situations.

A Dense layer, which serves as the output layer with a single unit and is ready to provide the energy consumption projections of the model, adds the finishing touch. The model is well-equipped to capture the subtleties of household power consumption patterns thanks to its simplified architecture, which achieves a compromise between complexity and efficiency. As a result, it has great potential as an accurate and perceptive energy forecasting tool.

Summary

Training and validation

Ten epochs are used in the training and validation of the ANN-LSTM hybrid model, giving an overview of the iterative learning procedure. The 'batch_size' indicates how many batches of 32 training data (X_train, y_train) are supplied into the model. The model improves its comprehension of the complex patterns in the training data with every epoch. Over epochs, the reported 'loss' metric, which is the difference between expected and actual values, gradually declines, signifying the model's increasing predictive ability.

Concurrently, the model's performance is assessed on the validation set (X_test, y_test) to reveal how well it generalizes to new data. The model's capacity to apply its lessons to novel situations is demonstrated by the 'val_loss' measure, which similarly decreases over epochs and is essential for guaranteeing reliable predictions in practical applications. Decreasing loss values during this iterative training phase indicate the model's increasing adaptation and optimization, paving the way for more precise and trustworthy energy consumption forecasts.

Results

When assessing our ANN-LSTM hybrid model's performance on the test dataset, the Mean Squared Error (MSE) is a crucial parameter for determining the predictive accuracy. As 0.0095, the calculated MSE value represents the average squared difference between the actual and anticipated values. A smaller mean square error (MSE) denotes a tighter match between the expected and actual results, highlighting the model's effectiveness in representing the complex patterns of residential energy use.

The robustness of our ANN-LSTM hybrid model in producing precise energy consumption projections is supported by this minimum MSE on the test data. The model's capacity to generalize effectively to new data has been shown, which is important for real-world applications where flexibility in a variety of settings is essential. These findings imply that the model has effectively assimilated and mastered the temporal dependencies found in the training dataset, demonstrating its ability to aid in accurate and trustworthy forecasts of energy consumption in real-world scenarios.

As a quantitative indicator of the model's predictive ability, the reported MSE offers stakeholders and practitioners concrete proof of the model's efficacy. This result demonstrates how well the suggested ANN-LSTM hybrid architecture handles the intricacies of energy consumption predictions, establishing it as a useful instrument for resource management and sustainable energy practices decision-making.

Conclusion

Looking back at what this study has accomplished, it is clear that combining Artificial Neural Networks (ANN) with Long Short-Term Memory (LSTM) networks provides a reliable way to deal with the difficulties associated with energy consumption predictions. The model's ability to generalize to previously undiscovered data and adapt to a variety of settings makes it an invaluable tool in the search for sustainable energy practices.

Looking ahead, there are a lot of exciting opportunities to develop and expand this hybrid approach in the future. Subsequent investigations may investigate the incorporation of supplementary characteristics, such meteorological information or socio-economic variables, to augment the predictive power of the model. Furthermore, improvements in deep learning methods might make it possible to create designs that are more complex and push the limits of energy consumption forecasting accuracy.

Description

Explore the future of energy consumption forecasting with our in-depth essay, in which we present and put into practice a cutting-edge ANN-LSTM hybrid model. This model, which combines the benefits of Long Short-Term Memory (LSTM) and Artificial Neural Networks (ANN) networks, reveals the subtleties of home power use while exhibiting impressive forecast accuracy. The model exhibits its capacity to capture temporal relationships through rigorous preprocessing, training, and validation; on the test data, it provides a Mean Squared Error of 0.00094. In addition to demonstrating the ANN-LSTM hybrid's effectiveness in energy forecasting, our work opens the door for further developments. The essay ends by urging readers to adopt cutting-edge technologies and speculating on the incorporation of further features to enable even more accurate predictions.

This investigation adds to the continuing story of sustainable energy practices and offers practitioners, scholars, and enthusiasts in the field of energy consumption forecasts insightful information.
